ULTRAFLEX Rotačná prevodovka riadenia T72FC

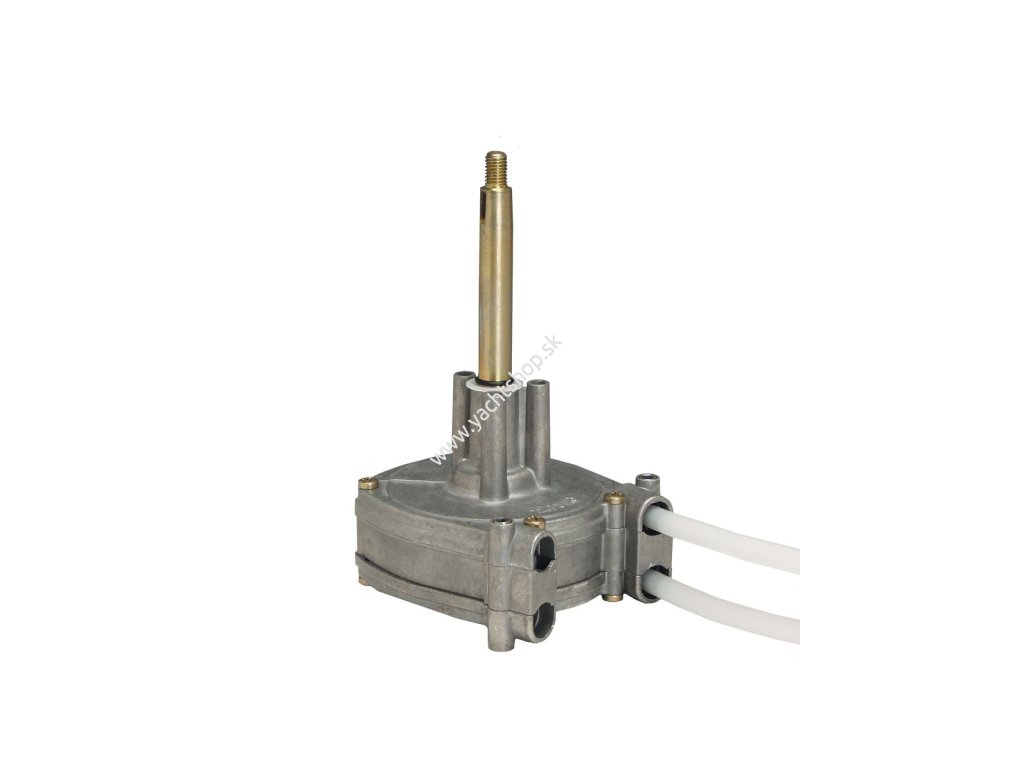

ULTRAFLEX rotačná dvojkáblová prevodovka riadenia T72FC

Rotačná prevodovka T72 zodpovedá bezpečnostným predpisom ABYC a je vhodná pre vonkajšie a vnútorné motory i pre Z pohony. Táto dvojkáblová prevodovka riadenia by mala byť boužitá pre člny, které sú rýchlejšie ako 50 míl/hod.

Technické dáta:

• montáž je možná s 90° nebo 20° sklonom i bez alebo s pevne zabudovanou jednotkou
• asi 3,8 otáčok kormidla silne zľava do silne prava
• dĺžka zdvihu 228 mm
• max. priemer kormidla 508 mm
• max. síla, která pôsobí na kormidlo: 3300 N (340 kg)
• minimálny spätný úder
• vhodný riadiaci kabel M66

A COMPLETE STEERING SYSTEM CONSISTS OF:

• Steering helm:

T71FC - 38867H - single cable steering helm

T72FC - 38868K - dual cable steering helm

• Mounting bezel:

X34 - 36654B - black, 90° mounting

X34W - 40654C - white, 90° mounting

X91 - 42850N - chrome, 90° mounting

X35 - 36655C - black, 20° mounting

• Steering cable: M66

NOTE: two M66 are needed with the T72FC system

• Steering wheel

• Engine connection kits

FEATURES AND TECHNICAL SPECIFICATIONS:

• Fast connect, simple installation

• All stainless steel cable output ends

• Corrosion resistant materials

• Particulary suitable where clearance is limited

• Optional 90° or 20° installation

• Standard 3/4” tapered shaft

• Lock-to-lock steering wheel turns: approx. 3,8

• Stroke: 228 mm (9”)

• Maximum allowable steering wheel diameter: 406 mm (16”)

• Minimum steering cable bend radius: 200 mm (7.9”)

• Minimal feedback

• Compact for mounting

• T71FC and T72FC steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat

• For boats faster than 50 mph Ultraflex hydraulic steering systems are recommended

• T71FC steering system is also available in package with ROTECH-I

• Exceeds EN 28848 safety standards

• Exceeds ABYC P17 safety standards
